Active Passive

Active/Passive with failover

• A main (Active) JFrog Platform site used by an organization with a passive JFrog Platform site (in a different cloud region or cloud provider) ready for failover
• Using Access and repository federation to keep data and Access entities in sync
• This architecture can be used for DR (Disaster Recovery) where the passive site acts as the backup platform
  • See more details in the Disaster Recovery section
• The sites can be in different cloud providers as the federation is an application feature
• See Limitations

Architecture

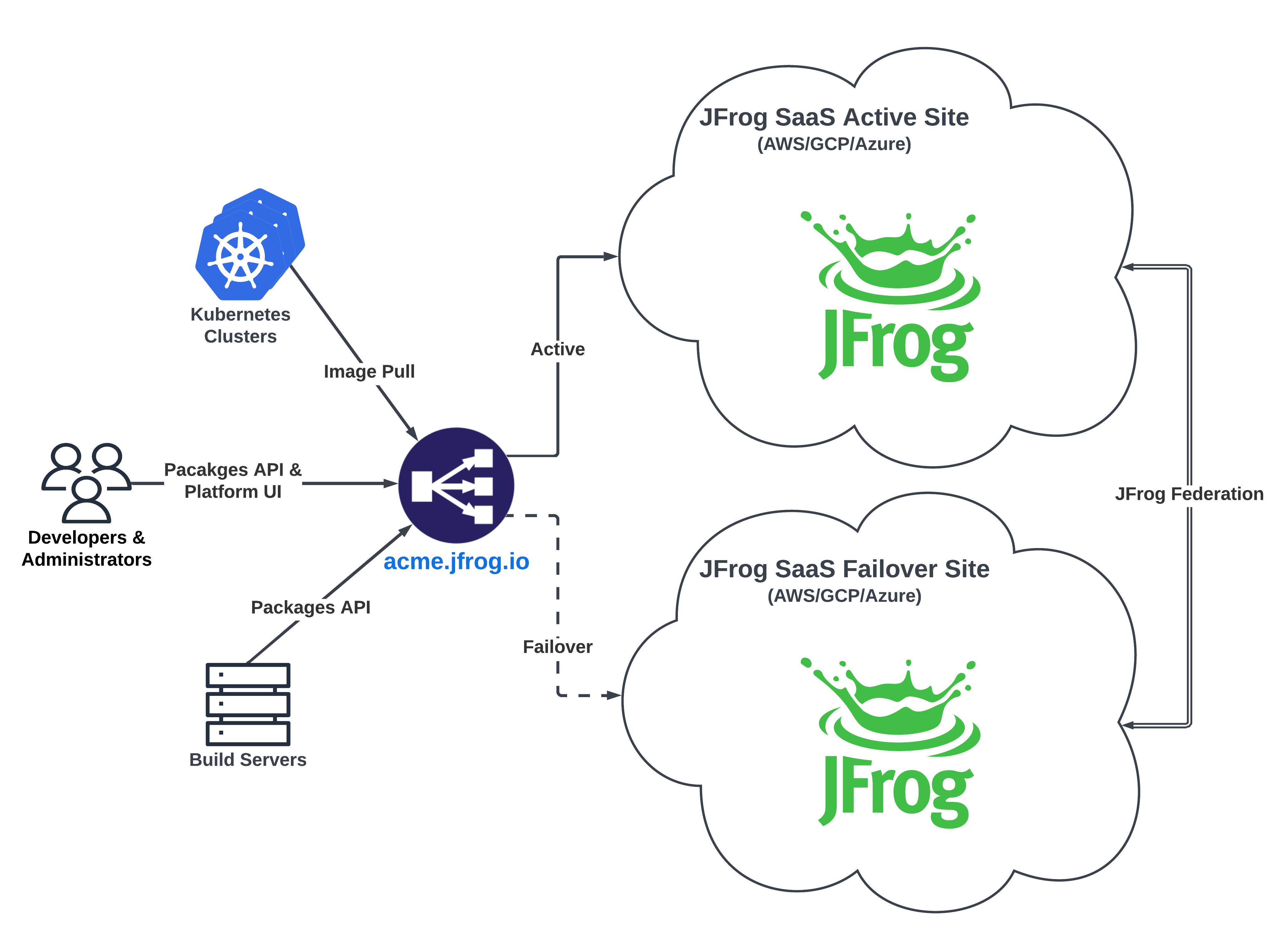

The following is a schematic high level architecture of such a deployment.
