Main Site with Edges

A fully managed central JFrog Platform SaaS site
One or more JFrog Artifactory Edge self-hosted or JFrog SaaS sites
Packages are distributed from the main site to edge sites using release bundles, or accessed via Smart Remote repositories that proxy and cache repositories from the main site at the edge sites.
Packages in the edges are read only (immutable), and consumed by the edge sites’ clients
Ideal for scenarios where software packages are developed and pushed to a main site, then need to be consumed at remote locations—such as by other organizational teams, customers, or vendors.

Artifactory Edge comes with limited capabilities. Review the Edge Node Features and Capabilities to understand them better.

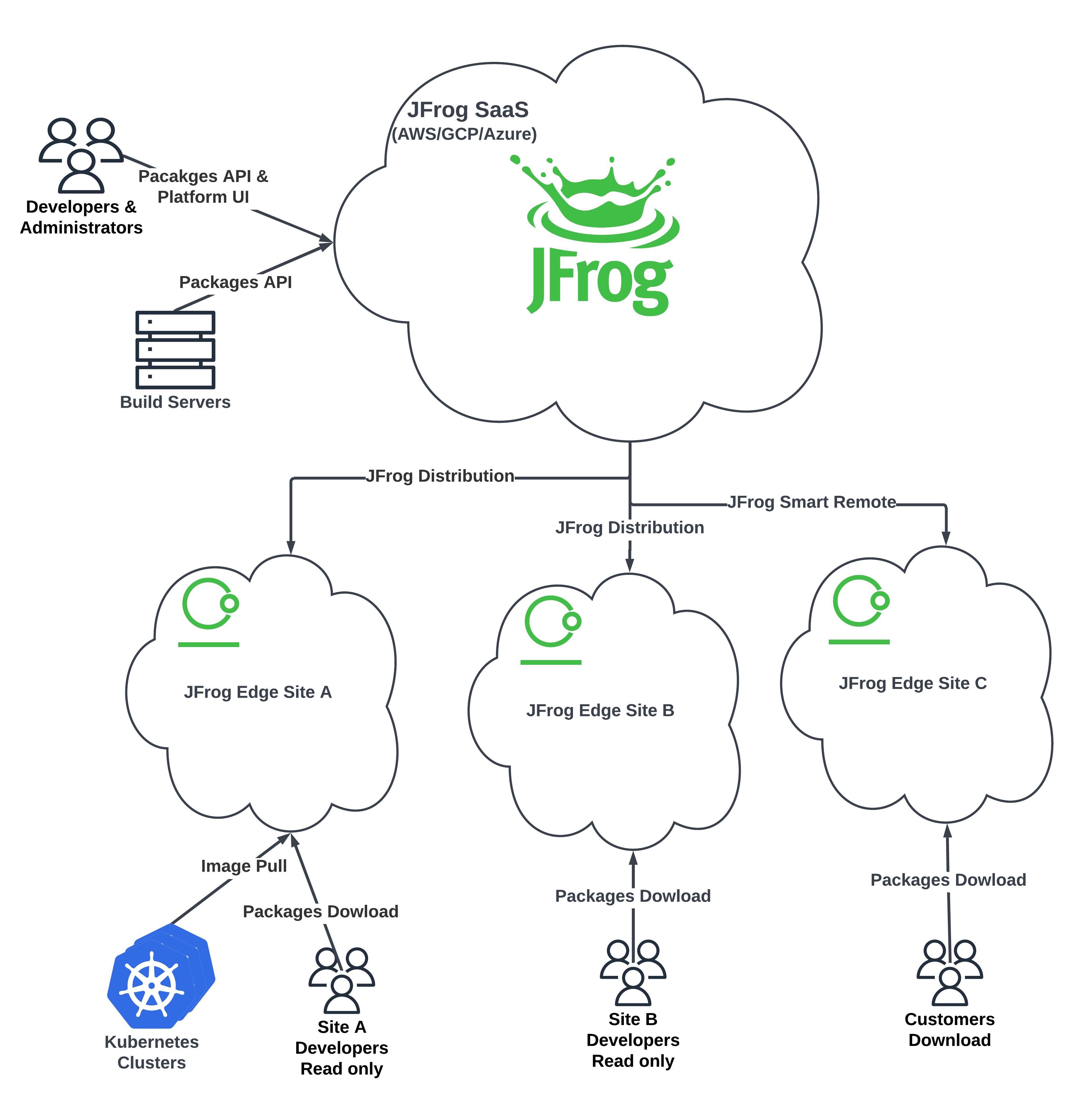

The following is a schematic high level architecture of such a topology
